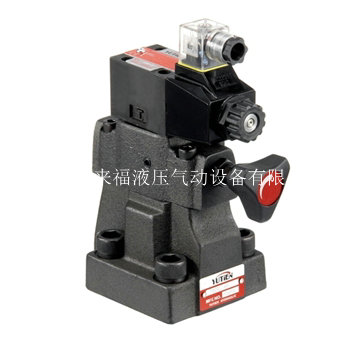

SBSG low noise electromagnetic control relief valve series features:

SBSG low-noise electromagnetic control relief valve is a combination of low-noise pilot valve and electromagnetic directional valve. In addition to the characteristics of the SBG series, the pressure of the pump is remotely unloaded by an electric signal acting on the solenoid valve, or guided by connection The relief valve is adjusted to the solenoid valve port, so that the system obtains two-stage or three-stage pressure control.

SBSG low noise electromagnetic control relief valve series model description:

SBS	G	-06	1P	-3	1A2
series	Installation type	Nominal diameter in	way to control	Pressure adjustment range Mpa	Coil voltage
	G: Plate type				A1:AC110V
low noise		03：3/8”	1PN: Normally open unloading	1：0.7~7	A2:AC220V
Electromagnetic guided		06：3/4”	1P: Normally open to maintain pressure	2：3.5~14	A3:AC380V
Relief valve		10：11/4”		3：7~25	D1:DC12V
					D2:DC24C

SBSG low noise electromagnetic control relief valve series specifications:

Model	high working pressure Mpa	Pressure adjustment range Mpa	Rated flow e/min
SBSG-03	25	1:0.7~7	50
SBSG-06		2:3.5~14	120
SBSG:10		3:7~!25	220

SBSG low noise electromagnetic control relief valve series product specifications:

Types of	Control valve	Material	cast iron
model	S-BSG-03-**	Brand	Taifeng
Scope of application	mechanical	Product alias	Electromagnetic relief valve
Applicable medium	Oil	proper temperature	80 (℃)
Nominal pressure	210 (MPa)	Nominal diameter	0610 (mm)
Installation form	Plate	Operating temperature	high temperature
Type (channel position)	Straight-through	Connection Type	Flange
Parts and accessories	Accessories	Flow direction	unidirectional
Drive way	electromagnetic	form	Angle
Stressful environment	high pressure	Body material	cast iron
